您的当前位置:首页 > 产品信息 > CINCON电源模块 > CINCON电源转换器3W-75W系列

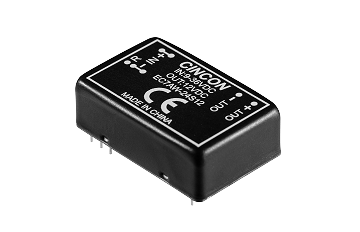

产品名称:CINCON电源转换器3W-75W系列
产品详细说明

DIP Converter, DC to DC Power Supply Manufacturer

Cincon designs and manufactures 3W - 75W DC/DC DIP converters with industry standard and pin-out. Features are high efficiency, high operating temperature and wide input range. Cincon also provides non-isolation and high isolation DC/DC converters for variety of applications.

Cincon DIP Converter Introduction

For dip DC-DC converters, there are various packages such as DIP24 or SMD24 package from 3W to 15W, 1”x1” package from 10W to 30W, 2”x1” package from 10W to 75W, 2”x 1.6” & 2”x2” packages from 15W to 40W. With more-than-29-year R&D experiences, Cincon is specialized in railway, industrial, ITE, 5G telecom, medical and household applications.



For industrial applications, all of DIP DC-DC converters are suitable for industrial use.

For railway applications, there are EN 50155 compliant DIP converters such as DIP24 8W & 10W, 2”x1” package 20W & 40W. Furthermore, Cincon offers 2”x1”, 20W, 18:1 ultra-wide input range DC-DC converter which covers more distributed voltages of the system of the application.



Cincon also has more DIP converter products which are EN50155 designed to meet for you to choose.

18:1 Input Range

Model

Power

Input Voltage

Output Voltage

Features

Dimensions (Inch)

NEW

EC7BW18

20W

8.5~160V

12V, 15V, 5V, ±12V, ±15V, ±24V

3KVac Isolation
UL62368-1
EN45545-2
EN50155 Compliant

2.00x1.00x0.40(DIP)

4:1 Input Range

Model

Power

Input Voltage

Output Voltage

Features

Dimensions (Inch)



EC3AW

3W

18~72V, 9~36V

12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V

500/1.5K/3KVdc Isolation

1.25x0.80x0.40(DIP24)
1.25×0.80x0.45(SMD24)



EC4AW

6W

18~72V, 9~36V

12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V

1.5K/3KVdc Isolation

1.25x0.80x0.40(DIP24)
1.25×0.80x0.45(SMD24)



EC6AW

8W

18~75V, 9~36V

12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V

1.5KVdc Isolation
EN50155 Compliant

1.25x0.80x0.40(DIP24)
1.25×0.80x0.45(SMD24)



EC2SBW

10W

18~75V, 9~36V

12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V

1.5KVdc Isolation

1.00x1.00x0.40(DIP)



EC4BW

10W

18~72V, 9~36V

12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V

500Vdc Isolation
EN55022 Class A

2.00x1.00x0.40(DIP)

NEW

EC7AW

10W

18~74V, 9~36V

12V, 15V, 3.3V, 5V, ±12V, ±15V

3KVdc Isolation
EN55032 Class A

1.25x0.80x0.40(DIP24)



EC6AW-110

10W

43~160V

12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V

3KVdc Isolation
UL60950-1 & CB
EN45545-2
EN50155 Compliant

1.25x0.80x0.50(DIP24)



EC8AW

15W

18~75V, 9~36V

12V, 15V, 3.3V, 5V, ±12V, ±15V

1.5KVdc Isolation
EN55032 Class A

1.25x0.80x0.40(DIP24)



EC3SBW

15W

18~75V, 9~36V

12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V

1.5KVdc Isolation

1.00x1.00x0.40(DIP)



EC5BW

15W

18~75V, 9~36V

12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V

1.5KVdc Isolation
EN55032 Class A

2.00x1.00x0.40(DIP)



EC5C

15W

18~72V, 9~36V

12V, 15V, 3.3V, 5/±12V, 5/±15V, 5V, ±12V, ±15V, ±5V

500Vdc Isolation
EN60950-1

2.00x2.00x0.40(DIP)



EC1SC

20W

18~72V, 9~36V

12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V

EN55022 Class A

2.00×1.60×0.45(DIP)



EC4SBW

20W

18~75V, 9~36V

12V, 15V, 3.3V, 5V, ±12V, ±15V

1.5KVdc Isolation

1.00x1.00x0.40(DIP)



EC7BW-110

20W

43~160V

12V, 15V, 5V, ±12V, ±15V

3KVdc Isolation
UL60950-1
EN45545-2
EN50155 Compliant

2.00x1.00x0.40(DIP)



EC7BW

20W

18~75V, 9~36V

12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V

1.5KVdc Isolation
EN45545-2
EN50155 Compliant

2.00x1.00x0.40(DIP)

NRND

EC3SCW

30W

18~75V, 9~36V

12V, 15V, 3.3V, 5V

1.5KVdc Isolation
EN60950-1

2.00×1.60×0.40(DIP)



EC5SBW

30W

18~75V, 9~36V

12V, 15V, 3.3V, 5V, ±12V, ±15V

1.5KVdc Isolation

1.00x1.00x0.40(DIP)

NRND

EC6E

30W

18~72V, 9~36V

+5/+12/-5V, 12V, 15V, 5/±12V, 5/±15V, 5V, ±12V, ±15V

500Vdc Isolation

2.56x3.00x0.83(DIP)



EC9BW

30W

18~75V, 9~36V

12V, 15V, 3.3V, 5V, ±12V, ±15V

1.5KVdc Isolation

2.00x1.00x0.40(DIP)



ECLB40W

40W

18~75V, 9~36V

12V, 15V, 3.3V, 5V, ±12V, ±15V

1.5KVdc Isolation
With Mounting Inserts

2.05x1.20x0.40(DIP)



ECLB40W-110

40W

43~160V

12V, 15V, 3.3V, 5V, ±12V, ±15V, ±24V

3KVdc Isolation
UL60950-1
EN45545-2
EN50155 Compliant

2.05x1.20x0.40(DIP)



ECLB60W

60W

18~75V, 9~36V

12V, 15V, 3.3V, 5V, ±12V, ±15V

1.5KVdc Isolation
With Mounting Inserts

2.05x1.20x0.40(DIP)

NEW

ECLB75W

75W

18~75V, 9~36V

12V, 15V, 5V, ±12V, ±15V, ±24V

2.25KVdc Isolation
With Mounting Inserts

2.05x1.20x0.40(DIP)

2:1 Input Range

Model

Power

Input Voltage

Output Voltage

Features

Dimensions (Inch)



EC3A

3W

18~36V, 36~72V, 4.5~6V, 9~18V

12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V

500/1.5K/3KVdc Isolation
UL60950-1

1.25x0.80x0.40(DIP24)
1.25×0.80x0.45(SMD24)



EC3AB

3W

18~36V, 36~72V, 9~18V

12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V

500/1.5K/3KVdc Isolation
EN55022 Class B
UL60950-1

1.25x0.80x0.50(DIP24)
1.25x0.80x0.55(SMD24)

NRND

EC3BB

7.5W

18~36V, 36~72V, 9~18V

12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V

1500Vdc Isolation
EN55022 Class B

2.00x1.00x0.40(DIP)



EC3A-E

3W

18~36V, 36~72V, 4.5~9V, 9~18V

12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V

500/1.5K/3KVdc Isolation
EN55032 Class A
UL60950-1

1.25x0.80x0.40(DIP24)
1.25×0.80x0.45(SMD24)
1.25×0.80x0.41(SMD24)



EC4A

6W

18~36V, 36~72V, 9~18V

12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V

500/1.5K/3KVdc Isolation
UL60950-1

1.25x0.80x0.40(DIP24)
1.25×0.80x0.45(SMD24)



EC4AB

6W

18~36V, 36~72V, 9~18V

12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V

500/1.5K/3KVdc Isolation
EN55022 Class B
UL60950-1

1.25x0.80x0.50(DIP24)
1.25x0.80x0.55(SMD24)



EC4A-E

6W

18~36V, 36~72V, 9~18V

12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V

500/1.5K/3KVdc Isolation
EN55032 Class A
UL60950-1

1.25x0.80x0.40(DIP24)
1.25×0.80x0.45(SMD24)
1.25×0.80x0.41(SMD24)



EC6A

7.5W

18~36V, 36~72V, 9~18V

12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V

1.5KVdc Isolation
UL60950-1

1.25x0.80x0.40(DIP24)
1.25×0.80x0.45(SMD24)



EC2SB

10W

18~36V, 36~75V, 4.7~9V, 9~18V

12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V

1.5KVdc Isolation

1.00x1.00x0.40(DIP)
1.00x1.00x0.36(SMD)



EC4BE

10W

18~36V, 36~72V, 9~18V

12V, 15V, 5V, ±12V, ±15V, ±5V

500Vdc Isolation
EN55032 Class A

2.00x1.00x0.40(DIP)



EC4BU

10W

18~36V, 36~75V, 4.7~9V, 9~18V

12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V

1.5KVdc Isolation
EN55032 Class A

2.00x1.00x0.40(DIP)



EC7A

10W

18~36V, 36~75V, 9~18V

12V, 15V, 2.5V, 3.3V, 5V, ±12V, ±15V

1.5KVdc Isolation
UL60950-1

1.25x0.80x0.40(DIP24)
1.25×0.80x0.45(SMD24)



EC3SB

15W

18~36V, 36~75V, 9~18V

12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V

1.5KVdc Isolation

1.00x1.00x0.40(DIP)
1.00x1.00x0.36(SMD)

NRND

EC3C

15W

18~36V, 36~72V, 9~18V

12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V

500Vdc Isolation

2.00x2.00x0.40(DIP)



EC5BU

15W

18~36V, 36~75V, 9~18V

12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V

1.5KVdc Isolation
EN55032 Class A

2.00x1.00x0.40(DIP)



EC5BE

15W

18~36V, 36~72V, 9~18V

12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V

500Vdc Isolation
EN55032 Class A

2.00x1.00x0.40(DIP)



EC7B

20W

18~36V, 36~75V, 9~18V

1.8V, 12V, 15V, 2.5V, 3.3V, 5V, ±12V, ±15V

1.5KVdc Isolation

2.00x1.00x0.40(DIP)



EC6C

30W

18~36V, 36~72V, 9~18V

12V, 15V, 3.3V, 5/±12V, 5/±15V, 5V, ±12V, ±15V, ±5V

500Vdc Isolation
EN60950-1

2.00x2.00x0.40(DIP)



EC7C

40W

18~36V, 36~75V, 9~18V

12V, 15V, 2.5V, 3.3/5V, 3.3/±12V, 3.3/±15V, 3.3V, 5/±12V, 5/±15V, 5V, ±12V, ±15V

1.5KVdc Isolation
EN60950-1

2.00x2.00x0.40(DIP)

High Isolation 6KV

Model

Power

Input Voltage

Output Voltage

Features

Dimensions (Inch)



EC4AW-H6

6W

18~72VDC, 9~36VDC

12V, 5V, ±12V, ±15V

6KVdc Isolation
EN55032 Class A
5uA Leakage Current

1.25x0.80x0.40
(DIP24)

+/-10% Input Range

Model

Power

Input Voltage

Output Voltage

Features

Dimensions (Inch)



EC3AE

3W

12V, 24V, 28V, 48V, 5V

12V, 15V, 5V, ±12V, ±15V

1.25x0.80x0.40(DIP24)
1.25×0.80x0.45(SMD24)
