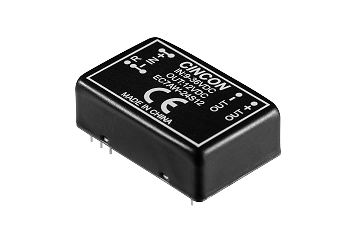

Cincon offers a variety of compact size DC/DC converters in SIP / SMD packages features 2:1 & 4:1 input range, continuous short circuit protection, regulated and unregulated outputs.
4:1 Input Range
|
|
Model
|
Power
|
Input Voltage
|
Output Voltage
|
Features
|
Dimensions (Inch)
|
|
NEW
|
EC3SAWH
|
3W
|
18~74V, 9~36V
|
12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V
|
3KVDC Isolation
|
0.86x0.36x0.44(SIP8)
|
|
NEW
|
EC4SAWH
|
6W
|
18~74V, 9~36V
|
12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V
|
3KVDC Isolation
|
0.86x0.36x0.44(SIP8)
|
|
|
EC3SAW
|
3W
|
18~75V, 9~36V
|
12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V
|
1.5KVDC Isolation
Input UVP
|
0.86x0.36x0.44(SIP8)
|
|
|
EC4SAW
|
6W
|
18~75V, 9~36V
|
12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V
|
1.5KVDC Isolation
|
0.86x0.36x0.44(SIP8)
|
|
NEW
|
EC5SAW
|
10W
|
18~75V, 9~36V
|
12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V
|
3KVDC Isolation
|
0.87x0.37x0.47(SIP8)
|
2:1 Input Range
|
|
Model
|
Power
|
Input Voltage
|
Output Voltage
|
Features
|
Dimensions (Inch)
|
|
|
EC2SA
|
2W
|
18~36V, 36~75V, 4.5~9V, 9~18V
|
12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V
|
1.5KVDC Isolation
Input UVP
|
0.86x0.36x0.44(SIP8)
|
|
|
EC3SA
|
3W
|
18~36V, 36~75V, 4.5~9V, 9~18V
|
12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V
|
1.5KVDC Isolation
Input UVP
|
0.86x0.36x0.44(SIP8)
|
Unregulated
|
|
Model
|
Power
|
Input Voltage
|
Output Voltage
|
Features
|
Dimensions (Inch)
|
|
|
EC1SAN
|
1W
|
10.8~13.2V, 21.6~26.4V, 4.5~5.5V
|
12V, 15V, 5V, ±12V, ±15V, ±5V
|
1.5KVDC Isolation
|
0.77x0.24x0.40(SIP7)
0.77x0.28x0.40(SIP7)
0.54x0.36x0.29(SMD)
0.64x0.36x0.29(SMD)
|
|
|
EC1TAN
|
1W
|
10.8~13.2V, 21.6~26.4V, 4.5~5.5V
|
12V, 15V, 5V
|
1KVDC Isolation
|
0.46x0.24x0.40(SIP4)
0.46x0.30x0.40(SIP4)
|
|
|
EC2SAN
|
2W
|
10.8~13.2V, 21.6~26.4V, 4.5~5.5V
|
12V, 15V, 5V, ±12V, ±15V, ±5V
|
1KVDC Isolation
|
0.77x0.28x0.40(SIP7)
|
|
NEW
|
EC2SANH
|
2W
|
10.8~13.2V , 21.6~26.4V, 4.5~5.5V
|
12V, 15V, 5V, ±12V, ±15V, ±5V
|
3KVDC Isolation
|
0.77x0.28x0.40(SIP7)
|
|
