您的当前位置:首页 > 产品信息 > CINCON电源模块 > Medical Power 15W-500W系列

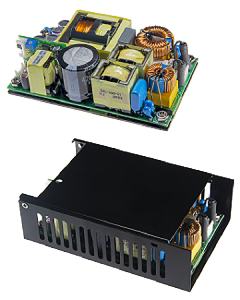

产品名称:Medical Power 15W-500W系列
产品详细说明

Accumulating more than 15 years of experience in medical product design, Cincon provides customers with a variety of products and technical services. Medical products provide low leakage current and harsh environment endurance that meets the highest requirements of hospital and health care applications. We offers a diverse product line of medical power supplies, Class I or Class II adapters with universal input 90~264Vac or even 80~264Vac. All our medical products meets the industry highest requirements for 2MOPP, ANSI/AAMI ES60601-1/EN60601-1 Ed 3.1, and EN60601-1-2 Ed4.0 Class B. Also, all are CEC & ErP Level VI Compliant.



For external medical power supplies, there are medical Class II interchangeable plug adapters, and the power range starts from 15W to 30W. There are also desktop medical Class II adapters, and the power range starts from 36W to 100W. In addition, Cincon provides desktop medical power adapters with Class I & Class II option which are 70W and 160W.



For internal medical power supplies, there are Class II open-frame on-board type with the 20W output power and Class I open-frame connector type with the output power range starting from 40W to 500W. The case covered option is also available. In addition, Cincon has medical power supplies built in with baseplate-cooling technology and the power range starts from 130W to 500W.

Medical Class I & Class II Adapter

Model

Power

Input Voltage

Output Voltage

Features

Dimensions (Inch)

NEW

TR70M

70W

80-264

12V, 15V, 18V, 24V, 36V, 48V

2MOPP
Altitude 5000m
Meets EN60335-1

4.724x2.047x1.220

NEW

TR160M

160W

80-264

12V, 24V, 36V, 48V

2MOPP
Altitude 5000m
Meets EN60335-1

5.906x2.756x1.496

NEW

TR220M

220W

80-264

12V, 24V, 36V, 48V, 56V

2MOPP
Altitude 5000m

7.087x2.953x1.752

Medical Class II Adapter

Model

Power

Input Voltage

Output Voltage

Features

Dimensions (Inch)

NEW

TR36M

36W

80-264

5V, 9V, 12V, 13.5V, 15V, 18V, 24V, 36V, 48V

2MOPP
Altitude 5000m
EN60601-1-11 IP21
Meets EN60335-1

3.937x1.771x0.886

NRND

TR60M

60W

90-264

5V, 12V, 15V, 18V, 19V, 24V, 36V, 48V

2MOPP
Level V

5.197x2.283x1.201



TR100M

100W

90-264

12V, 15V, 18V, 20V, 24V, 48V

2MOPP

5.591x2.283x1.457

Medical Class II Interchangeable Plug Adapter

Model

Power

Input Voltage

Output Voltage

Features

Dimensions (Inch)



TR15RAM

15W

90-264

5V, 12V, 15V, 24V

2 MOPP

3.173x1.885x1.704

NEW

TR18RDM

18W

80-264

5V, 9V, 12V, 15V, 18V, 24V

2MOPP
Altitude 5000m
EN60601-1-11 IP22,
Meets EN60335-1

3.165x1.693x1.453

NEW

TR30RDM

30W

80-264

5V, 9V, 12V, 15V, 18V, 24V

2MOPP
Altitude 5000m
EN60601-1-11 IP22
Meets EN60335-1

3.807x2.283x1.703



TR30RAM

30W

90-264

5V, 9V, 12V, 15V, 18V, 24V

2 MOPP

4.278x2.440x1.445

Medical Class II On-Board Open Frame

Model

Power

Input Voltage

Output Voltage

Features

Dimensions (Inch)



CFM21

20W

90-264

3.3V, 5V, 9V, 12V, 15V, 24V

2MOOP

2.38x1.60x0.80
(PCB-mount)
3.00x1.60x0.77
(Wafer)
2.53x1.74x0.80
(Encapsulated)
3.00x1.60x0.77
(Screw Terminal)



CFM21M

20W

90-264

5V, 9V, 12V, 15V, 24V

2MOPP
Low Profile
Altitude 5000m

2.38x1.60x0.80
(PCB-mount)
3.00x1.60x0.77
(Wafer)
2.53x1.74x0.80
(Encapsulated)
3.00x1.60x0.77
(Screw Terminal)

Medical Class I Connector Open Frame

Model

Power

Input Voltage

Output Voltage

Features

Dimensions (Inch)



CFM40M

40W

90-264

3.3V, 5V, 9V, 12V, 15V, 24V, 30V, 36V, 48V

2MOPP
Meets EN60335-1

3.000x2.000x0.948
(PCB-mount)
3.000x2.000x0.909
(Wafer)
3.200x2.441x1.260
(Cover)



CFM60M

60W

90-264

5V, 12V, 15V, 24V, 48V

2MOPP

4.000x2.000x1.100
(Wafer)
4.606x2.441x1.575
(Cover)



CFM100M

100W

90-264

5V, 7.5V, 9V, 12V, 15V, 18V, 24V, 28V, 36V, 48V

2MOPP

5.000x3.000x1.050
(Wafer)



CFM150M

150W

90-264

12V, 24V, 36V, 48V

2MOPP

5.000x3.000x1.050
(Wafer)

Medical Baseplate-cooled Open Frame

Model

Power

Input Voltage

Output Voltage

Features

Dimensions (Inch)

NEW

CFM130M

130W

80-264

12V, 18V, 19V, 24V, 36V, 48V

2MOPP
Altitude 5000m
Meets EN60335-1
Class I & Class II

3.000x2.000x1.20
(Open-frame)
3.598x2.000x1.299
(Baseplate)
3.598x2.520x1.358
(Cover)



CFM200M

200W

90-264

12V, 24V, 48V

2MOPP
Class I & Class II

4.000x2.000x1.480
(Baseplate)
4.606x2.441x1.594
(Cover)



CFM300M

300W

90-264

12V, 24V, 36V, 48V

2MOPP
Class I

5.000x3.000x1.421
(Baseplate)
5.355x3.425x1.591
(Cover)

NEW

CFM500M

500W

80-264

12V, 18V, 24V, 36V, 48V

2MOPP
Altitude 5000m
Meets EN60335-1
Class I

5.000x3.000x1.540
(Baseplate)
5.354x3.425x1.673
(Cover)
