您的当前位置:首页 > 产品信息 > CINCON电源模块 > 裸板式开关电源 6W-500W系列

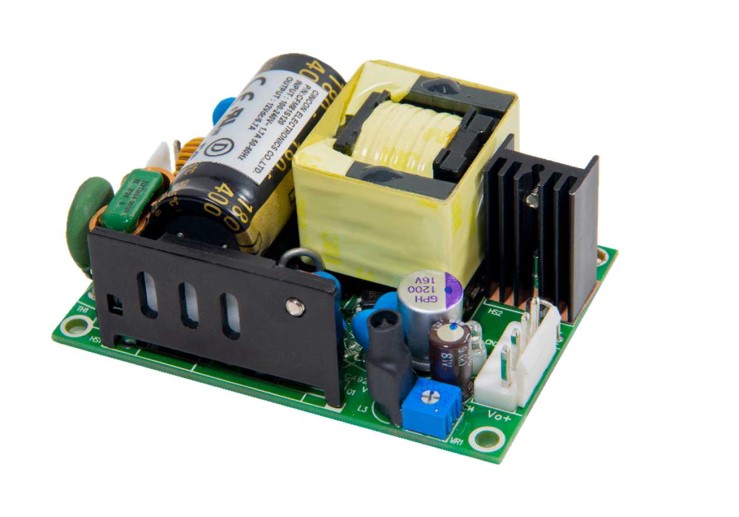

产品名称:裸板式开关电源 6W-500W系列
产品详细说明

AC-DC switching power supply module open frame type

Cincon Open Frame AC-DC switching power supplies module offers Connector type, Baseplate-cooled type and PCB mounting type, with power ranging from 6W to 500W, they are some of highest power density products in the current market. All products are approved for latest ITE safety or Medical safety. For some of our latest models, they meet EN/IEC 60335-1, and include a unique feature of 200% peak load feature. This special 200% peak load feature fulfills the need to customer sudden needs of power for a short period of time, and can now avoid choosing other products that are over-spec, save on cost and layout space/footprint consumption.

Cincon AC-DC switching power supply module introduction

For industrial, ITE, 5G telecom applications, there are Class I, Class II, and both Class I & Class II categories to choose. The power range of Class I power supplies starts from 20W to 300W. The power range of Class II power supplies starts from 6W to 60W. The power range of the category with both options starts from 80W, 130W, and 150W.



For medical application, there are three categories of “Class II”, “Class I” and “Class I & Class II”. The Class II medical power supply has only one 20W. In Class I category, the power range starts from 40W to 500W. For Class I & Class II category, the power output has 130W and 200W.

ITE/Industrial On-Board Open Frame

Model

Power

Input Voltage

Output Voltage

Features

Dimensions (Inch)

NEW

CFM06S

6W

90-264

3.3V, 5V, 9V, 12V, 15V, 24V

Altitude 5000m
Meets EN60335-1
Class II

1.555x0.764x0.720
(PCB-mount)
1.618x0.827x0.787
(Encapsulated)
1.950.x0.728x0.689
(Wafer)

NRND

CFM10

10W

85-264

3.3V, 5V, 9V, 12V, 15V, 24V

Leakage Current 0.25mA

2.599x1.772x0.906
(PCB-mount)



CFM12S

12W

90-264

5V, 9V, 12V, 15V, 24V

Altitude 5000m
Approval EN60335-1
Class II

1.500x1.000x0.764
(PCB-mount)
1.600x1.1x0.772
(Encapsulated)
2.150x1.000x0.681
(Wafer)

NRND

CFM15

15W

85-264

3.3V, 5V, 9V, 12V, 15V, 24V

Leakage Current 0.25mA

2.752x1.890x0.906
(PCB-mount)



CFM25S

25W

90-264

5V, 12V, 15V, 24V, 36V, 48V

2 Times Peak Load
Altitude 5000m
Approval EN60335-1
Class II

2.000x1.100x0.980
(PCB-mount)
2.091x1.193x0.976
(Encapsulated)
2.776x1.100x0.906
(Wafer)

NEW

CFM41S

40W

90-264

12V, 15V, 24V, 36V, 48V, 5V

2 Times Peak Load
Altitude 5000m
Meets EN60335-1
Class II

2.000x2.000x1.01
(PCB-mount)
2.14x2.14x1.035
(Encapsulated)
2.70x2.00x0.941
(Wafer)

NEW

CFM61S

60W

90-264

5V, 12V, 15V, 24V, 36V, 48V

2 Times Peak Load
Altitude 5000m
Class II

2.000x2.000x1.346
(PCB-mount)
2.136x2.136x1.409
(Encapsulated)
2.700x2.000x1.291
(Wafer)

ITE/Industrial Connector Open Frame

Model

Power

Input Voltage

Output Voltage

Features

Dimensions (Inch)

NEW

CFM50S

50W

90-264

5V, 12V, 15V, 24V, 36V, 48V

Altitude 5000m
Meets EN60335-1
ClassⅠ& Class Ⅱ

3.000x2.000x1.067 (Wafer)
3.000x2.00x1.142 (PCB Mount)
3.598x2.520x1.358 (Cover)



CFM20

20W

85-264

3.3V, 5V, 9V, 12V, 15V, 24V

Low Profile

3.501x2.000x1.000
(PCB-mount)
3.501x2.000x0.906
(Wafer)



CFM40S

40W

90-264

3.3V, 5V, 9V, 12V, 15V, 24V, 30V, 36V, 48V

High Peak Load

4.000x2.000x1.275
(PCB-mount)
4.000x2.000x1.200
(Wafer)
4.606x2.441x1.575
(Cover)



CFM40D/T

40W

90-264

3.3V/5V/-12V, 5V/12V, 5V/12V/-12V, 5V/12V/-5V, 5V/15V/-15V, 5V/24V, 5V/24V/-12V, 5V/24V/-5V, 5V/24V/12V

Dual & Triple Outputs

4.000x2.000x1.200
(Wafer)
4.606x2.441x1.575
(Cover)



CFM60S

60W

90-264

3.3V, 5V, 9V, 12V, 15V, 24V, 30V, 36V, 48V

High Peak Load

4.000x2.000x1.275
(PCB-mount)
4.000x2.000x1.200
(Wafer)
4.606x2.441x1.575
(Cover)



CFM60T

60W

90-264

3.3V/5V/-12V, 5V/12V/-12V, 5V/15V/-15V, 5V/24V/-12V

Triple Outputs

4.000x2.000x1.260
(Wafer)

NEW

CFM70S

70W

90-264

5V, 12V, 15V, 24V, 36V, 48V

Altitude 5000m
Meets EN60335-1
ClassⅠ& Class Ⅱ

3.000x2.000x1.067 (Wafer)
3.000x2.00x1.142 (PCB Mount)
3.598x2.520x1.358 (Cover)



CFM80S

80W

90-264

5V, 12V, 15V, 24V, 48V

EN61000-3-2 Class A

4.000x2.000x1.142
(PCB-mount)
4.000x2.000x1.07
(Wafer)

NEW

CFM81S

80W

90-264

12V, 15V, 24V, 48V

2 Times Peak Load
Altitude 5000m
Approval EN60335-1
ClassⅠ& Class Ⅱ

3.000x2.000x1.339 (Wafer)
3.200x2.441x1.575 (Cover)

ITE/Industrial Baseplate-cooled Open Frame

Model

Power

Input Voltage

Output Voltage

Features

Dimensions (Inch)

NEW

CFM130S

130W

80-264

12V, 18V, 19V, 24V, 36V, 48V

Altitude 5000m
Meets EN60335-1
ClassⅠ& Class Ⅱ

3.000x2.000x1.20 (Open-frame)
3.598x2.000x1.299 (Baseplate)
3.598x2.520x1.358 (Cover)

NEW

CFM150S

150W

90-264

12V, 24V, 28V, 36V, 48V

Altitude 5000m
Meets EN60335-1
Class I & Class II

4.00x2.00x1.283
(Open-frame)
4.598x2.00x1.362
(Baseplate)

NEW

CFM260S

260W

85-264

12V, 24V, 36V, 48V

Altitude 5000m
Meets EN60335-1
Class I

4.000x2.000x1.441
(Open-frame)
4.598x2.000x1.520
(Baseplate)
4.598x2.520x1.594
(Cover)



CFM300S

300W

90-264

12V, 24V, 36V, 48V

Altitude 5000m
Meets EN60335-1
Class I

5.000x3.000x1.421
(Baseplate)
5.355x3.425x1.591
(Cover)

NEW

CFM500S

500W

80-264

12V, 18V, 24V, 36V, 48V

Altitude 5000m
Meets EN60335-1

5.000x3.000x1.540
(Baseplate)
5.354x3.425x1.673
(Cover)

Medical Class II On-Board Open Frame

Model

Power

Input Voltage

Output Voltage

Features

Dimensions (Inch)



CFM21

20W

90-264

3.3V, 5V, 9V, 12V, 15V, 24V

2MOOP

2.38x1.60x0.80
(PCB-mount)
3.00x1.60x0.77
(Wafer)
2.53x1.74x0.80
(Encapsulated)
3.00x1.60x0.77
(Screw Terminal)



CFM21M

20W

90-264

5V, 9V, 12V, 15V, 24V

2MOPP
Low Profile
Altitude 5000m

2.38x1.60x0.80
(PCB-mount)
3.00x1.60x0.77
(Wafer)
2.53x1.74x0.80
(Encapsulated)
3.00x1.60x0.77
(Screw Terminal)

Medical Class I Connector Open Frame

Model

Power

Input Voltage

Output Voltage

Features

Dimensions (Inch)



CFM40M

40W

90-264

3.3V, 5V, 9V, 12V, 15V, 24V, 30V, 36V, 48V

2MOPP
Meets EN60335-1

3.000x2.000x0.948
(PCB-mount)
3.000x2.000x0.909
(Wafer)
3.200x2.441x1.260
(Cover)



CFM60M

60W

90-264

5V, 12V, 15V, 24V, 48V

2MOPP

4.000x2.000x1.100
(Wafer)
4.606x2.441x1.575
(Cover)



CFM100M

100W

90-264

5V, 7.5V, 9V, 12V, 15V, 18V, 24V, 28V, 36V, 48V

2MOPP

5.000x3.000x1.050
(Wafer)



CFM150M

150W

90-264

12V, 24V, 36V, 48V

2MOPP

5.000x3.000x1.050
(Wafer)

Medical Baseplate-cooled Open Frame

Model

Power

Input Voltage

Output Voltage

Features

Dimensions (Inch)

NEW

CFM130M

130W

80-264

12V, 18V, 19V, 24V, 36V, 48V

2MOPP
Altitude 5000m
Meets EN60335-1
Class I & Class II

3.000x2.000x1.20
(Open-frame)
3.598x2.000x1.299
(Baseplate)
3.598x2.520x1.358
(Cover)



CFM200M

200W

90-264

12V, 24V, 48V

2MOPP
Class I & Class II

4.000x2.000x1.480
(Baseplate)
4.606x2.441x1.594
(Cover)



CFM300M

300W

90-264

12V, 24V, 36V, 48V

2MOPP
Class I

5.000x3.000x1.421
(Baseplate)
5.355x3.425x1.591
(Cover)

NEW

CFM500M

500W

80-264

12V, 18V, 24V, 36V, 48V

2MOPP
Altitude 5000m
Meets EN60335-1
Class I

5.000x3.000x1.540
(Baseplate)
5.354x3.425x1.673
(Cover)
