您的当前位置:首页 > 产品信息 > CINCON电源模块 > CINCON AC/DC模块电源 6W-700W系列

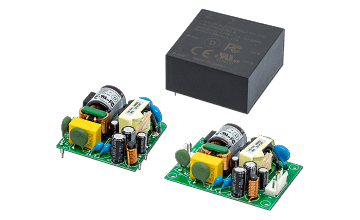

产品名称:CINCON AC/DC模块电源 6W-700W系列
产品详细说明

Cincon Encapsulated AC-DC power supplies comes in all sizes, ranging from 6W to 100W. All products are approved for IEC62368-1, UL62368-1, EN62368-1, as well as EN55032 Class B and CIRSS/FCC Class B. For some of our latest models, they meet EN60335-1, and include a unique feature of 200% peak load feature. This special 200% peak load feature fulfills the need to customer sudden needs of power for a short period of time, and can now avoid choosing other products that are over-spec, save on cost and layout space/footprint consumption.

ITE/Industrial On-Board Open Frame

Model

Power

Input Voltage

Output Voltage

Features

Dimensions (Inch)

NEW

CFM06S

6W

90-264

3.3V, 5V, 9V, 12V, 15V, 24V

Altitude 5000m
Meets EN60335-1
Class II

1.555x0.764x0.720
(PCB-mount)
1.618x0.827x0.787
(Encapsulated)
1.950.x0.728x0.689
(Wafer)



CFM12S

12W

90-264

5V, 9V, 12V, 15V, 24V

Altitude 5000m
Approval EN60335-1
Class II

1.500x1.000x0.764
(PCB-mount)
1.600x1.1x0.772
(Encapsulated)
2.150x1.000x0.681
(Wafer)



CFM25S

25W

90-264

5V, 12V, 15V, 24V, 36V, 48V

2 Times Peak Load
Altitude 5000m
Approval EN60335-1
Class II

2.000x1.100x0.980
(PCB-mount)
2.091x1.193x0.976
(Encapsulated)
2.776x1.100x0.906
(Wafer)

NEW

CFM41S

40W

90-264

12V, 15V, 24V, 36V, 48V, 5V

2 Times Peak Load
Altitude 5000m
Meets EN60335-1
Class II

2.000x2.000x1.01
(PCB-mount)
2.14x2.14x1.035
(Encapsulated)
2.70x2.00x0.941
(Wafer)

NEW

CFM61S

60W

90-264

5V, 12V, 15V, 24V, 36V, 48V

2 Times Peak Load
Altitude 5000m
Class II

2.000x2.000x1.346
(PCB-mount)
2.136x2.136x1.409
(Encapsulated)
2.700x2.000x1.291
(Wafer)

ITE/Industrial Brick Power

Model

Power

Input Voltage

Output Voltage

Features

Dimensions (Inch)

NEW

PDF700S

700W

90-264

12V, 24V, 28V, 48V, 56V

Low Profile
Built-in PFC
Altitude 5000
Class I

4.60x2.40x0.50

NEW

PFC750

750W

90-264

390V

Low Profile
Built-in PFC
Altitude 5000

2.28x2.40x0.50

NEW

CBM70S

70W

90-264

12V, 24V, 36V, 48V

Low Profile
Wide Operating Temp.
Built-in EMI Filter & Capacitor
Class I

2.28x2.40x0.67

Medical Class II On-Board Open Frame

Model

Power

Input Voltage

Output Voltage

Features

Dimensions (Inch)



CFM21

20W

90-264

3.3V, 5V, 9V, 12V, 15V, 24V

2MOOP

2.38x1.60x0.80
(PCB-mount)
3.00x1.60x0.77
(Wafer)
2.53x1.74x0.80
(Encapsulated)
3.00x1.60x0.77
(Screw Terminal)



CFM21M

20W

90-264

5V, 9V, 12V, 15V, 24V

2MOPP
Low Profile
Altitude 5000m

2.38x1.60x0.80
(PCB-mount)
3.00x1.60x0.77
(Wafer)
2.53x1.74x0.80
(Encapsulated)
3.00x1.60x0.77
(Screw Terminal)
