Non-isolation (1-30A)
P-DUKE provides 1-30A SMD type, through hole type Non-isolated dc to dc converter. We are adopting buck/ step design, with high efficiency, small size, positive / negative output, Regulated output ... and so on.
The SMD type is in line with J-std-020d humidity sensitive components standards. We acquired UL / EN / IEC 60950-1 ... related safety certification, to meet the customer industrial /Telecom/railway /IPC application selection or customized products services.
|
|
Series
|
Output
Power
|
Input Range
(VDC)
|
Output Voltage
(VDC)
|
Isolation Voltage
|
Application
|
Descriptions
|
|
NEW
|
HSR01
|
1A
|
9~72,
14~72,
17~72,
21~72,
33~72
|
3.3,
5,
6.5,
9,
12,
15,
24
|
None
|
POL
|
0.69 X 0.45 X 0.34 INCH
|
|
NEW
|
HSRP6
|
0.6A
|
9~72,
14~72,
17~72,
20~72,
33~72
|
3.3,
5,
6.5,
9,
12,
15,
24
|
None
|
POL
|
0.53 X 0.47 X 0.34 INCH
|
|
NEW
|
PSR02
|
2A
|
3~5.5,
3.8~5.5,
4.6~36,
4.75~36,
6.5~36,
9~36,
12~36,
15~36,
18~36
|
1.2,
1.5,
1.8,
2.5,
3.3,
5,
6.5,
9,
12,
15
|
None
|
POL
|
0.55 X 0.30 X 0.40 INCH
|
|
|
PSR1.0
|
1A
|
4.6~36,
4.75~36,
6.5~36,
9~36,
12~36,
15~36,
18~36
|
1.2,
1.5,
1.8,
2.5,
3.3,
5,
6.5,
9,
12,
15
|
None
|
POL
|
0.46 X 0.30 X 0.40 INCH
|
|
|

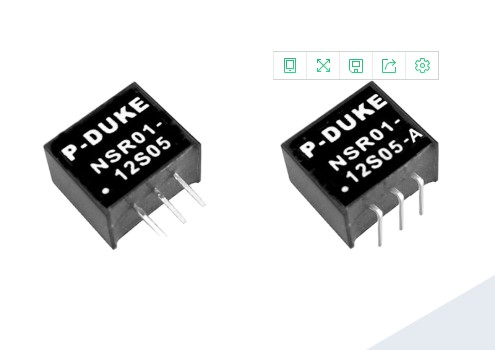

NSR01
|
1A
|
4.6~36,
6.5~36,
8~36,
10.5~36,
13.5~36,
16.5~36
|
1.5,
1.8,
2.5,
3,
3.3,
5,
6.5,
9,
12,
15
|
None
|
POL
|
0.46 X 0.30 X 0.40 INCH
|
|
NEW
|
LSR01
|
1A
|
3~5.5,
3.8~5.5,
4.6~36,
4.75~36,
6.5~36,
9~36,
12~36,
15~36,
18~36
|
1.2,
1.5,
1.8,
2.5,
3.3,
5,
6.5,
9,
12,
15
|
None
|
POL
|
0.60 X 0.37X 0.29 INCH
|
|
|
ASR01
|
1A
|
-18~-32,
-15~-32,
-11.5~-32,
-10.5~-32,
-8~-32,
-7~-32
|
-15,
-12,
-9,
-8,
-6,
-5.2,
-5
|
None
|
POL
|
0.46 X 0.30 X 0.65 INCH; Negative I/O
|
|
|
SSR01
|
1A
|
3~5.5,
4.6~36,
6.5~36,
10.5~36,
13.5~36,
16.5~36
|
1.2 ~ 3.63,
1.5 ~ 5.5,
2.5 ~ 8.0,
4.5 ~ 12.6,
4.5 ~ 13.5,
4.5 ~ 15.5
|
None
|
POL
|
0.60 X 0.37 X 0.29 INCH
|
|
|
OSR03
|
3A
|
2.5~5.5,
4.5~14,
10~30
|
0.59 ~ 6.0,
0.6 ~ 3.3,
3.0 ~ 6.0,
5.0 ~ 15
|
None
|
POL
|
0.37 X 0.24 X 0.61 INCH; 0.41 X 0.24 X 0.65 INCH
|
|
|
DOS06-05T / DOH06-05T
|
6A
|
2.4~5.5
|
0.75 ~ 3.3
|
None
|
POL
|
0.80 X 0.45 X 0.21 INCH; 0.90 X 0.40 X 0.20 INCH
|
|
|
DOS06-12T / DOH06-12T
|
6A
|
8.3~14
|
0.75 ~ 5
|
None
|
POL
|
0.80 X 0.45 X 0.25 INCH; 0.90 X 0.40 X 0.24 INCH
|
|
|
DOS10-05T / DOH10-05T
|
10A
|
2.4~5.5
|
0.75 ~ 3.3
|
None
|
POL
|
1.30 X 0.53 X 0.30 INCH; 2.00 X 0.50 X 0.28 INCH
|
|
|
DOS10-12T / DOH10-12T
|
10A
|
8.3~14
|
0.75 ~ 5
|
None
|
POL
|
1.30 X 0.53 X 0.30 INCH; 2.00 X 0.50 X 0.28 INCH
|
|
|
DOS16-05T / DOH16-05T
|
16A
|
2.4~5.5
|
0.75 ~ 3.3
|
None
|
POL
|
1.30 X 0.53 X 0.30 INCH; 2.00 X 0.50 X 0.28 INCH
|
|
|
DOS16-12T / DOH16-12T
|
16A
|
8.3~14
|
0.75 ~ 5
|
None
|
POL
|
1.30 X 0.53 X 0.30 INCH; 2.00 X 0.50 X 0.28 INCH
|
|
|
DOS30 / DOH30
|
30A
|
4.5~5.5,
6~14
|
0.8 ~ 3.63,
0.8 ~ 5.5
|
None
|
POL
|
1.30 X 0.53 X 0.37 INCH; 2.00 X 0.50 X 0.37 INCH
|
|
